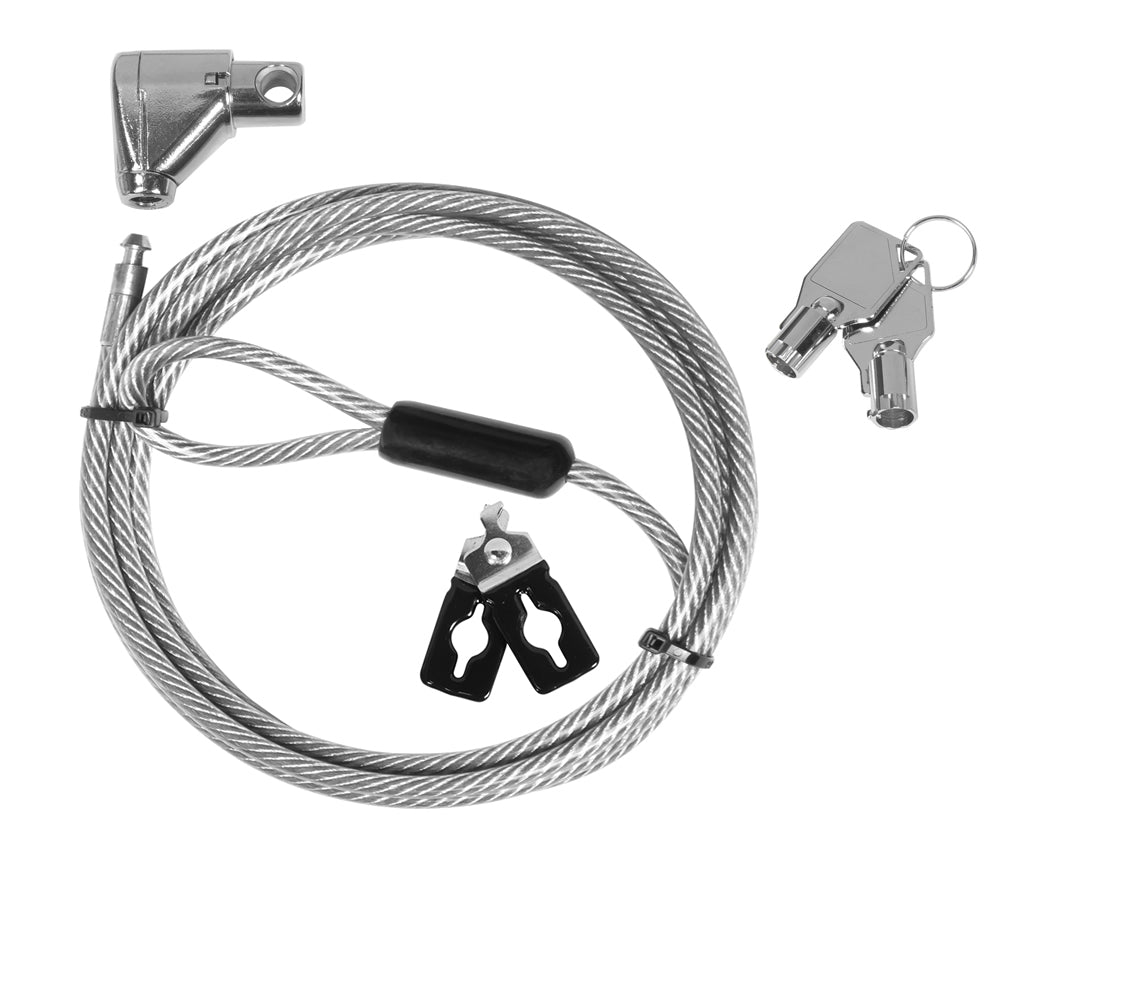

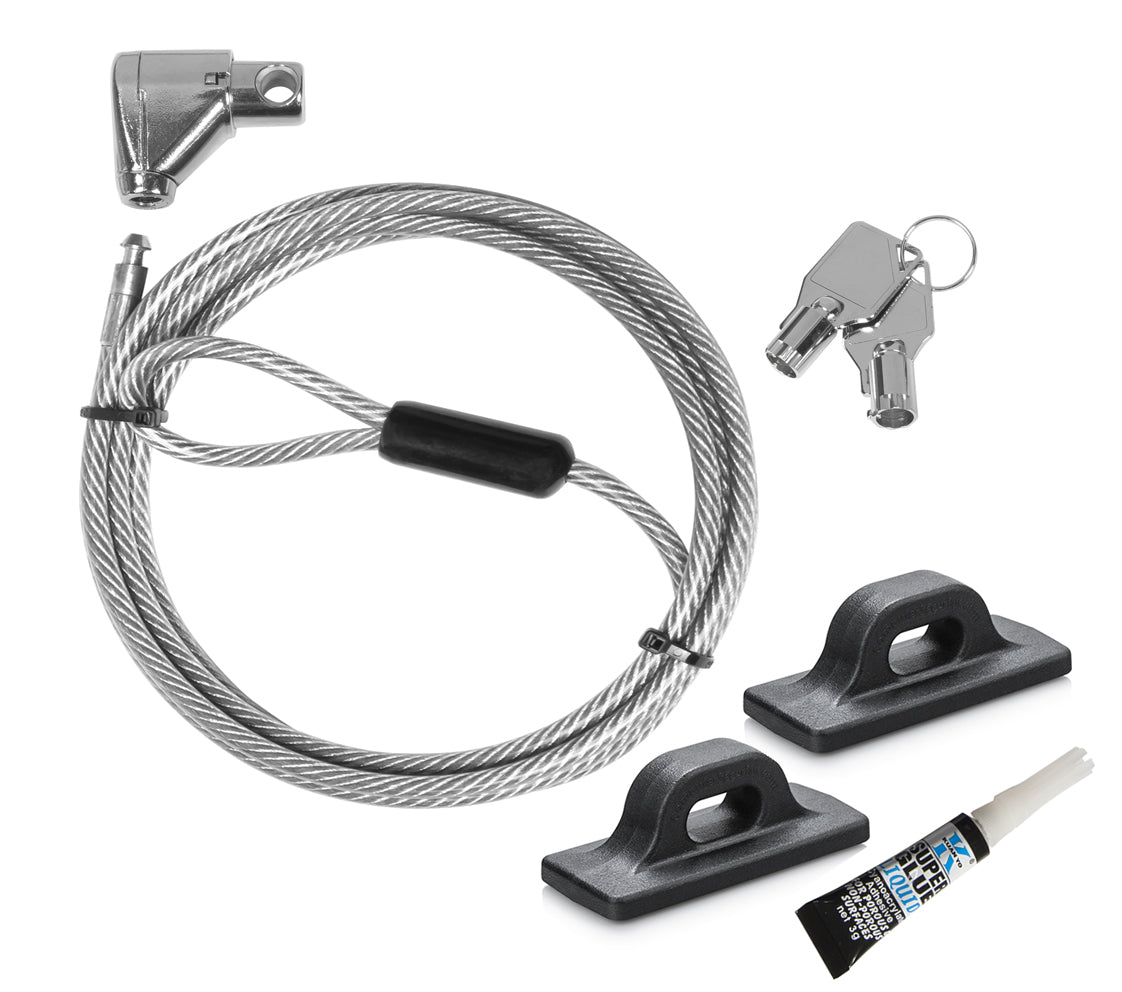

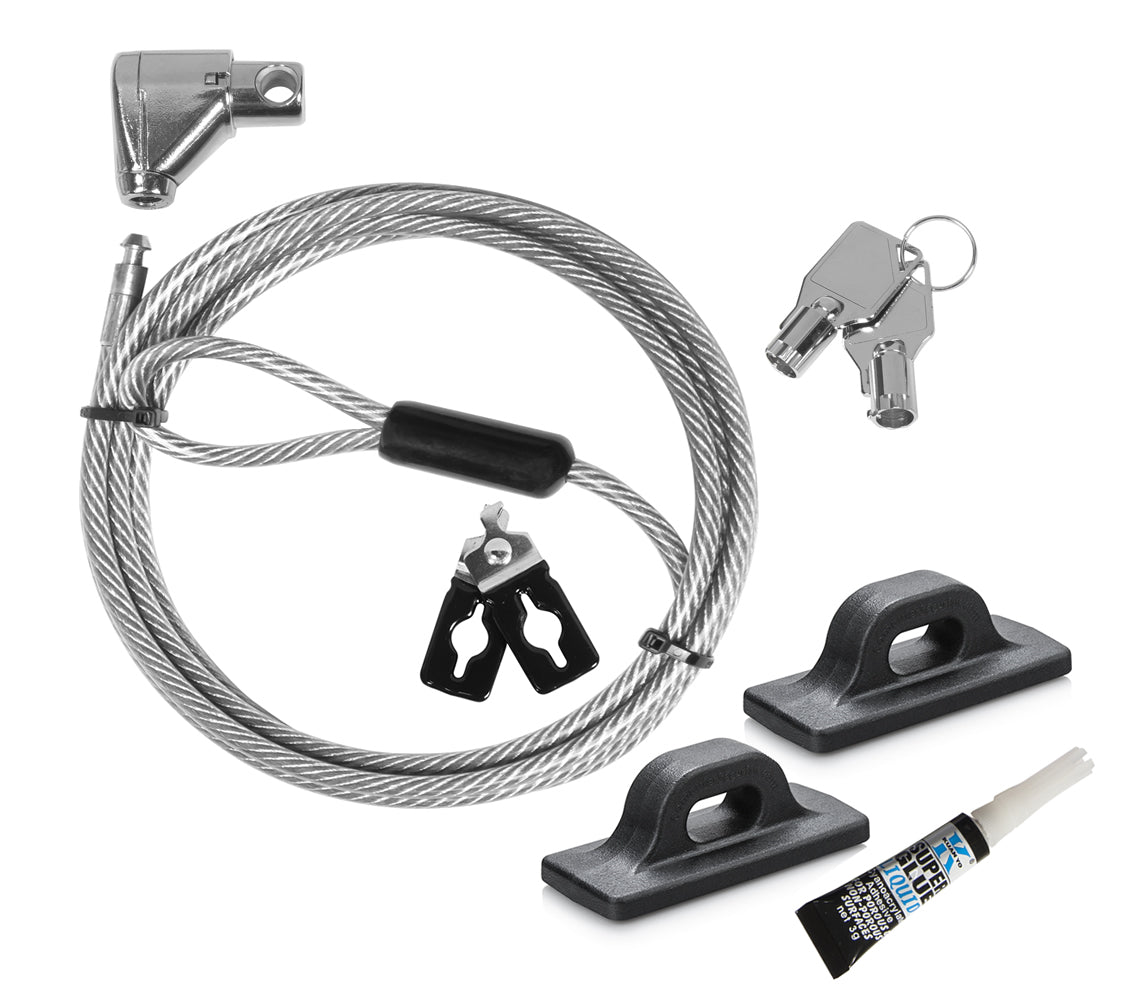

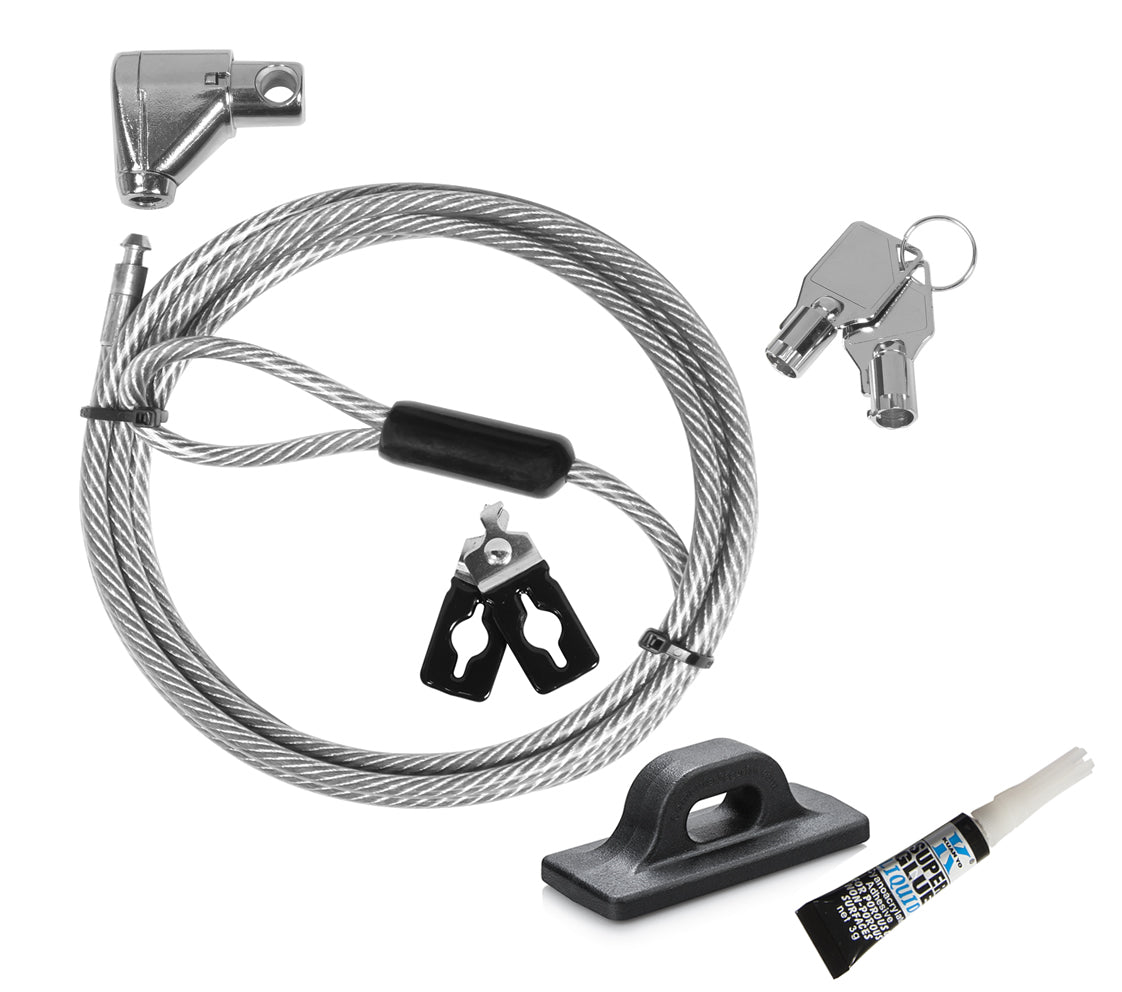

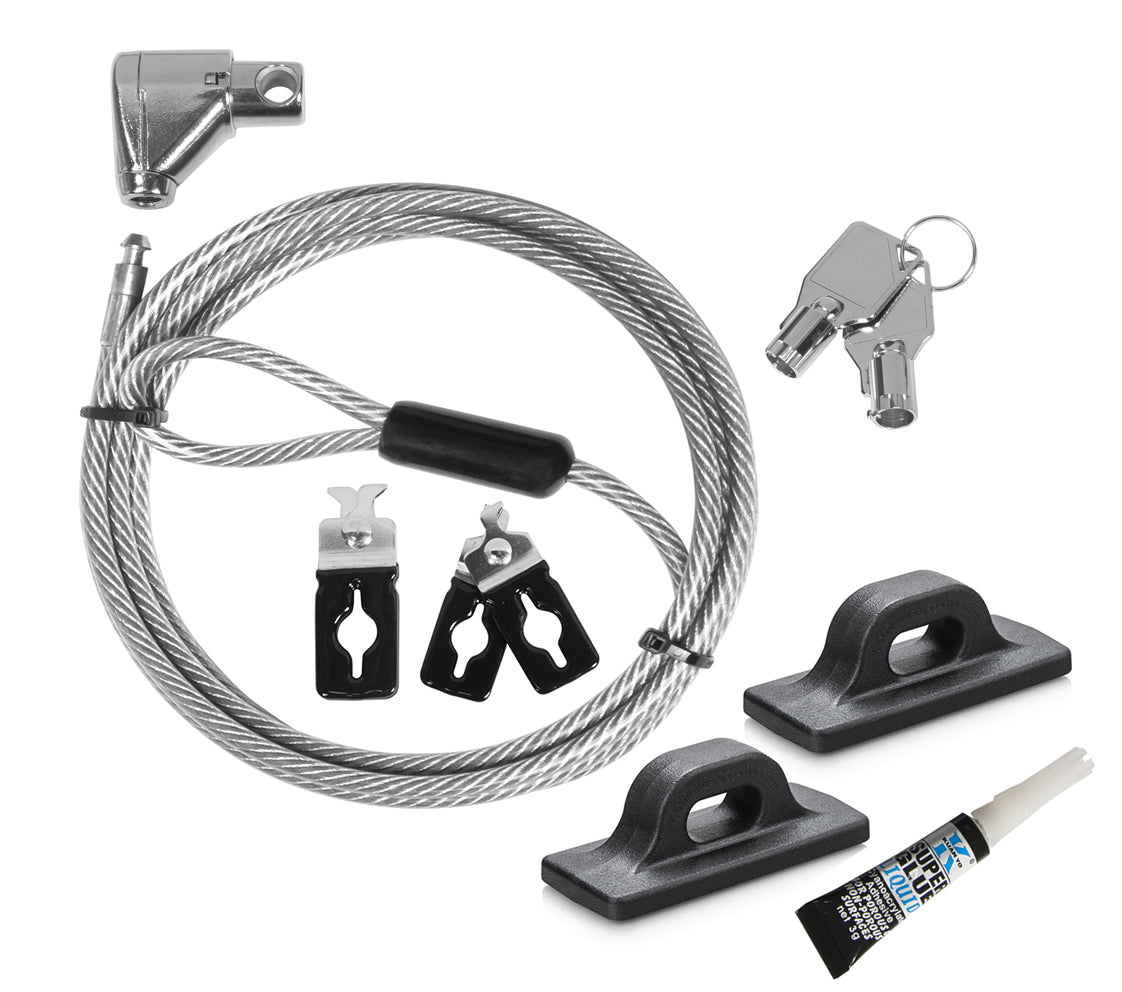

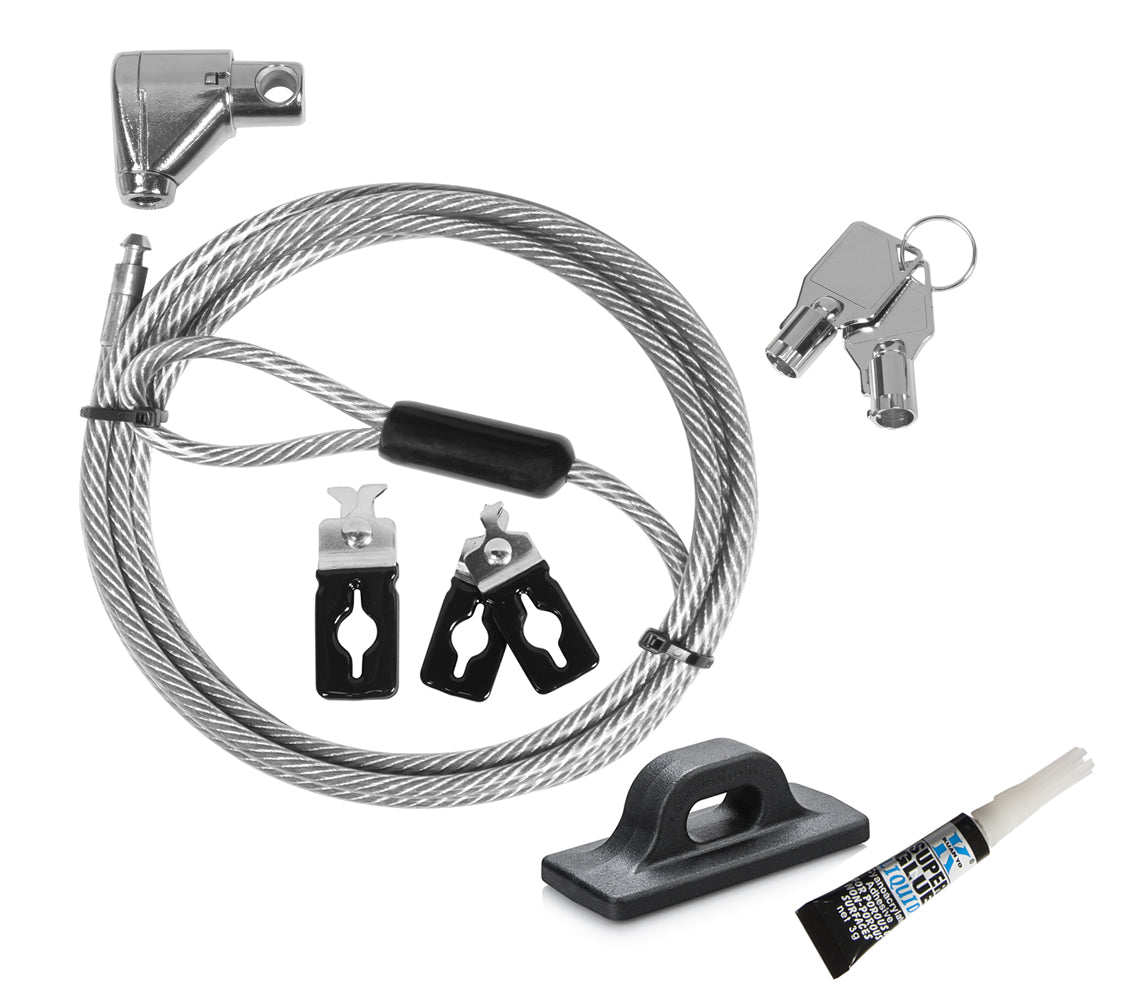

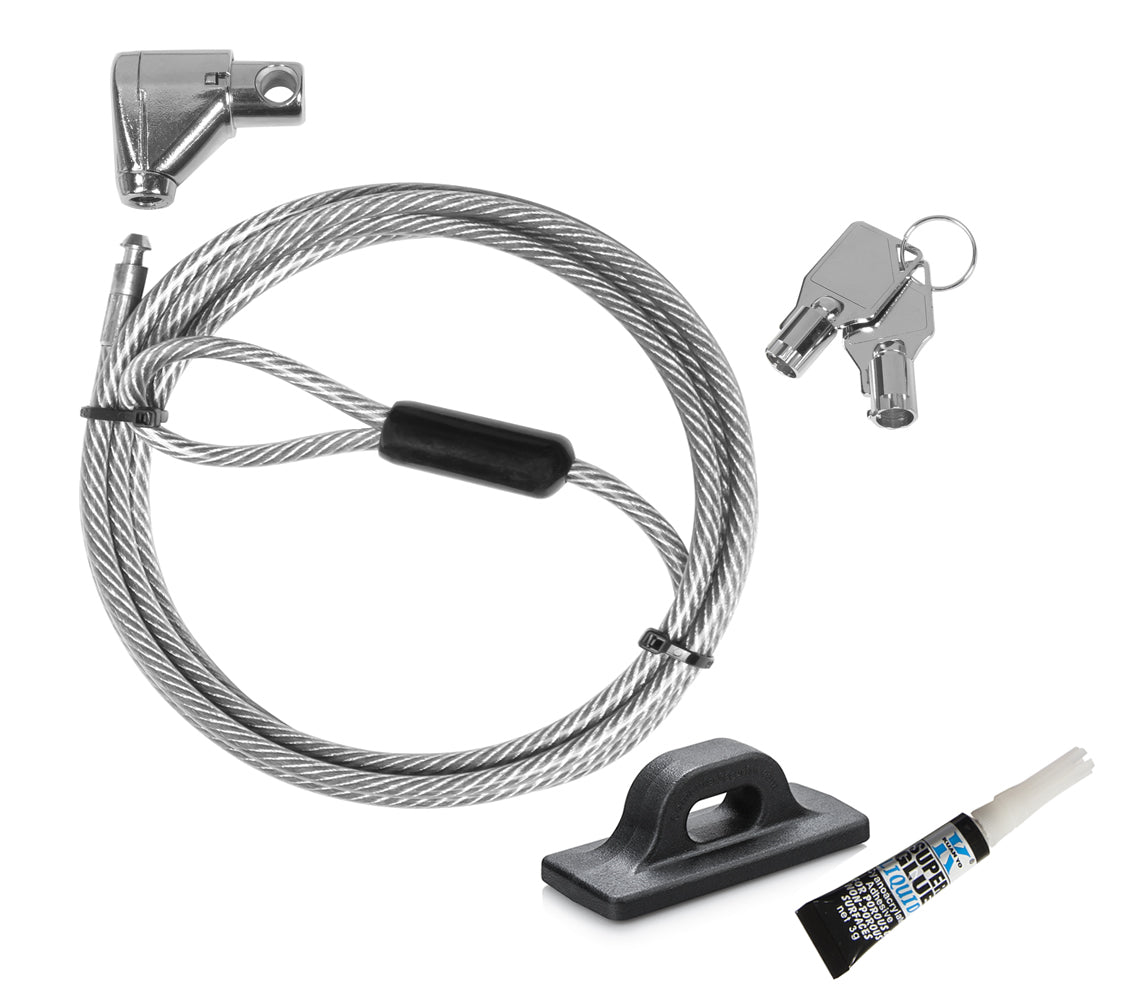

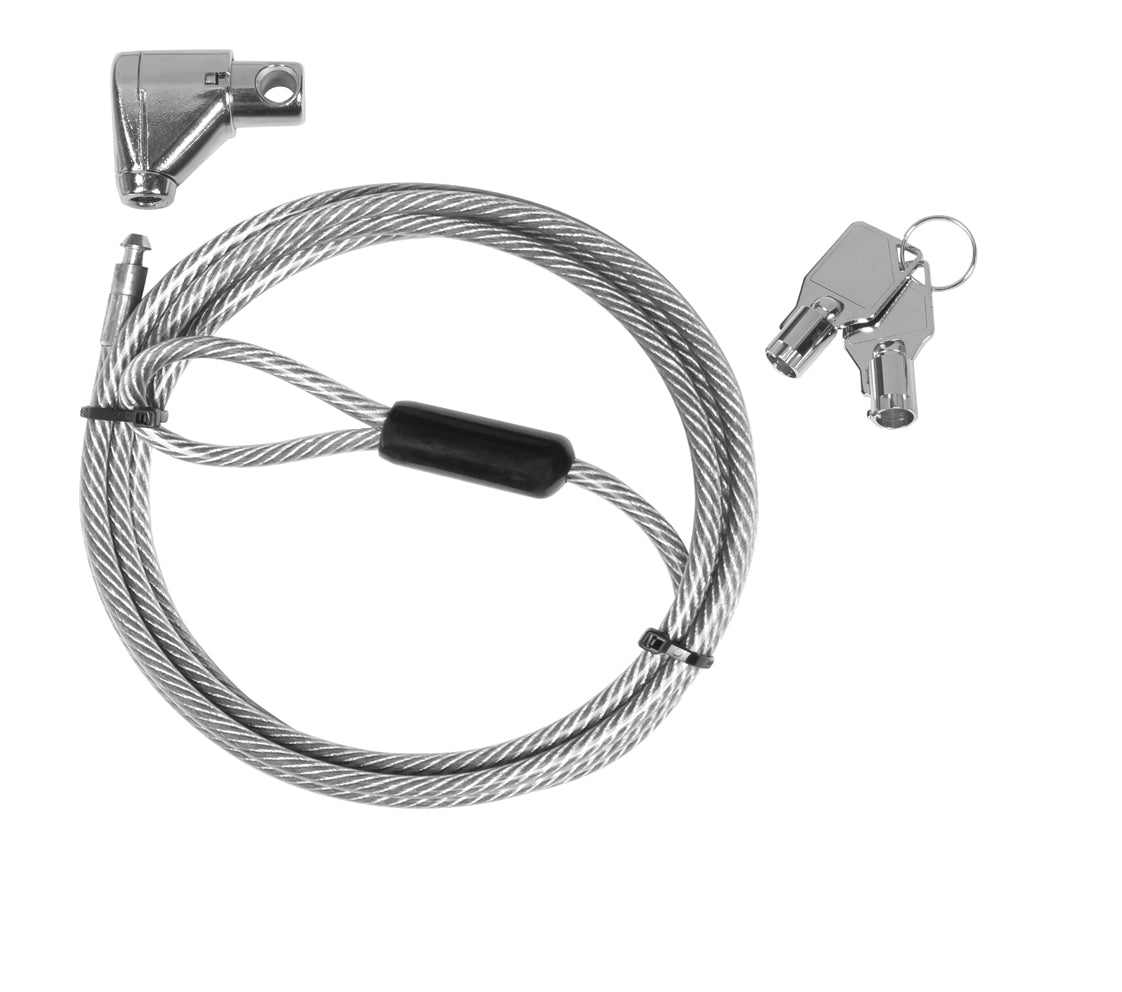

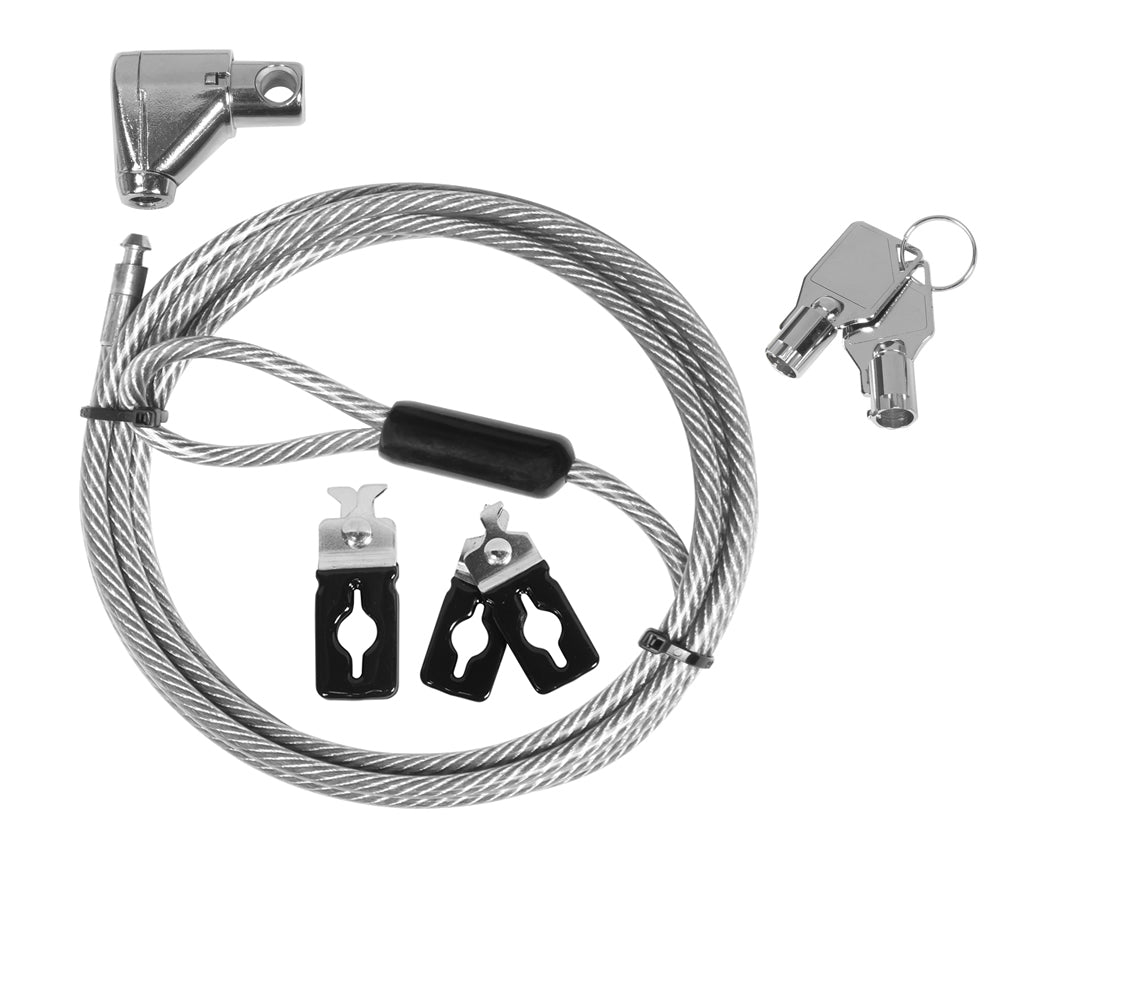

CSP-810 Computer Lock with Heavy Duty Cable
Need a higher security cable for equipment? This kit includes the CSP-810 Lock head with the heavy duty/high security cable. Great for stationary and higher risk area. Customize the kit to include the fasteners you need.
Have Questions? Call (800) 466-7636
If you need to match your existing KA or MK key, enter it below
The Guardian 810 lock style is better for equipment that does not need to be unlocked often.
This can save you money over other lock styles. The 810 can be used as a bullet end after threading the security cable through your chosen fasteners, or it can provide a loop if the situation warrants
Heavy Duty security cable.
The 3/16" thick, or heavy duty/high security version (H) is great for projectors, servers, or other high risk equipment. This cable is made of heavy duty aircraft cable, vinyl coated in a clear coating. It is 3/16" diameter steel, vinyl coated to 1/4".
Choose your Fasteners
Scissor Clip
Choose how many you need! The scissor clip is designed to fit into the standard security slot located in most computers, laptops, desktops, monitors, projectors, printers, and more. This clip needs to be used with a security cable that passes through the hole in the clip to keep it closed so it cannot be removed. If the equipment has a horizontal slot, a bracket is included that can be used.
Glue-on Fastener
Choose how many you need! This fastener can be used on any equipment you need secured that DOES NOT have a built in security slot. You can also use this as an anchor point to attach the cable to a desk or other immovable object. This is a permanent attachment.
810 Lock style (great for desktops)
Features:
- Bullet end style lock
- Ability to provide a second loop
- High security 6 tumbler pin lock with tubular key
- Works with all fasteners
- Multiple key options available
- Lock Finish: Chrome
Heavy Duty/High Security style cable
Features:
- 6' long
- 7x19 galvanized steel aircraft cable
- 3/16" steel cable diameter, vinyl coated to 1/4"
- Color: clear
- Custom lengths avaialble (minimums and lead time may apply)
Guardian Series Keys
There are several keyed options for you to choose from, and each kit comes with 2 keys unless otherwise specified for the key option chosen. The key type you choose depends on access requirements and organizational needs.
SUPERVISOR-ONLY ACCESS (keyed-alike): The same key can open all locks. Good choice if only a couple of people need access to the locks, such as a computer lab, or stationary desktops or laptops.
SUPERVISOR-OVERRIDE ACCESS (master-keyed): Each lock can be opened by its own individual key, but there is one “master” key that opens all locks. Ideal for administrative or technical support access.
KA UNDER MASTER (KAMK): This combines the first two options above, allowing for multiple groups of KA locks under one Master key.
INDIVIDUAL ACCESS (KD): Each lock is opened by its own unique key. Great for personal use or where mandated by security laws.
SPECIAL (Grand Master, Reserved, etc): There are many combinations of the above options for larger organizations, such as separate Master Key systems for each campus and one Grand Master key to open them all.
Have a question about key options? Call (800) 466-7636 and we will guide you to the option that is right for you.
Scissor clip specs
| Dimensions | XLK-U Scissor Clip | Bracket only |
|---|---|---|
| A | 15/32" | Height = 15/16" Width = 11/16" Dimension of Hole = 1/2" |
| B | 1/4" | |
| C | 3/32" | |
| D | 3/16" | |
| E | 1 3/8" | |
| F | 5/16" | |
| G | 5/8" | |
| H | 3/32" |
Rectangular Glue-On Fastener specs
This composite fastener permanently adheres using a commercial strength adhesive (included). Can be used on plastic, wood, or metal.
