CPU3 Computer Locker for Servers
Limit all access with a full enclosure! Installers and IT will love the slide out drawer, keeping maintenance easy!
The CPU3 is for servers or larger computers. See dimensions below. This unit comes standard in BLACK. Call for other color options.
Because these larger CPU lockers need to ship by freight, please request a quote below so we can get you accurate shipping charges.
In the comments section below, please include:
- Number of units required
- Which side you want the door hinge on , left or right
- If you require the units keyed-alike, or master-keyed (master keyed has an upcharge)
- The zip code these units would be shipping to
- Whether you have loading dock or not
We will send your quote to the email address provided.

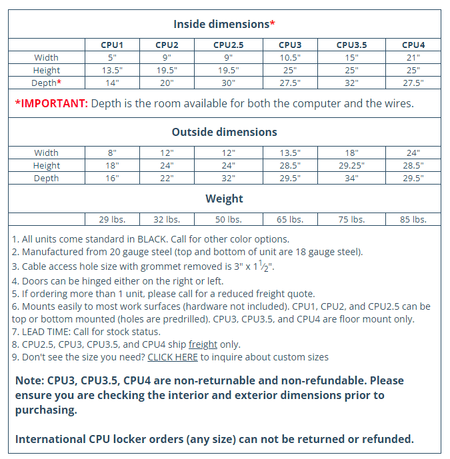

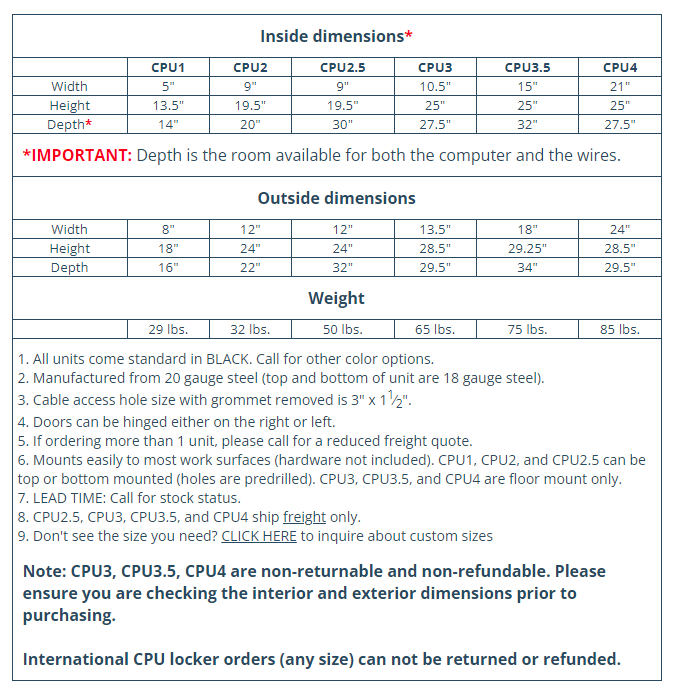

CPU Lockers are available in six sizes

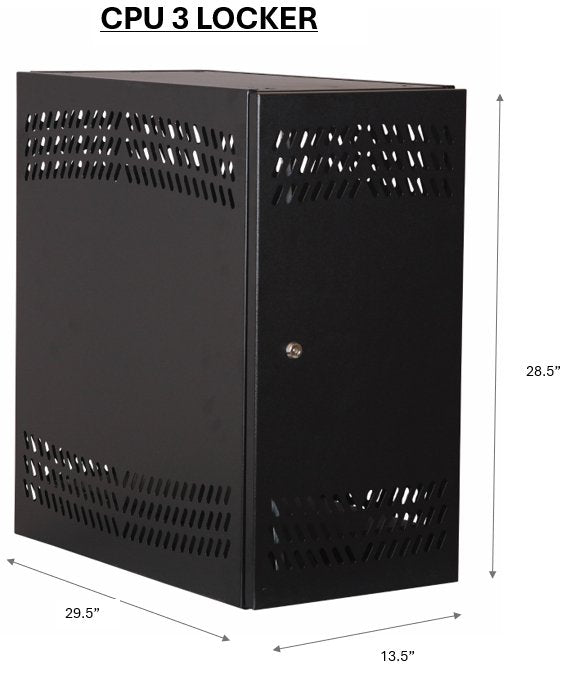

The CPU 3 Locker accommodates servers or larger computers. This unit protects computers with the following dimensions:
| CPU3 LOCKER for large servers | ||||||
| Inside Dimensions | Outside Dimensions | |||||
| W | D | H | W | D | H | |
| 10.5" | 27.5" | 25" | 13.5" | 29.5" | 28.5" | |
| Weight: 65 lbs. | ||||||
| If these dimensions don't work for your computer, see other models available. | ||||||
Features
- Slide out drawer! Easy access for maintenance!
- Has a cable grommet hole in the back for wire/cable management
- Ships fully assembled
- Manufactured from 20 gauge steel (top and bottom of unit are 18 gauge steel)
- Finished with durable powder coat paint
- Comes standard in Black. Other colors available upon request
- Door can be hinged on either the left or right
- Door comes with a double locking bar for added security
- CPU3 can only be floor mounted, due to its weight
- Pull out tray provides easy access to your CPU for routine maintenance
- The ventilation pattern provides adequate airflow for cooling the stored CPU to prevent overheating
- Because this unit is made for larger computers and servers, a 100mm cooling fan comes standard pre-installed
- Available keyed-alike or master-keyed
Double locking bar for added security

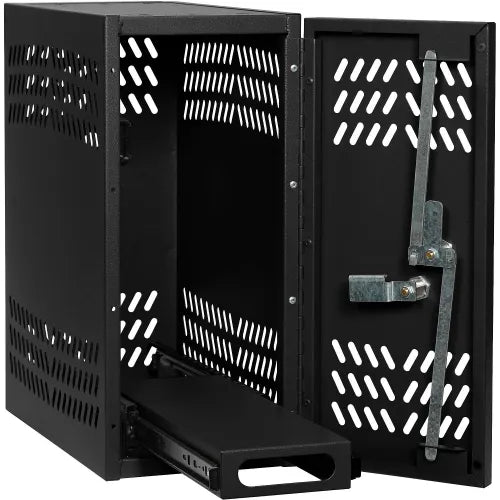

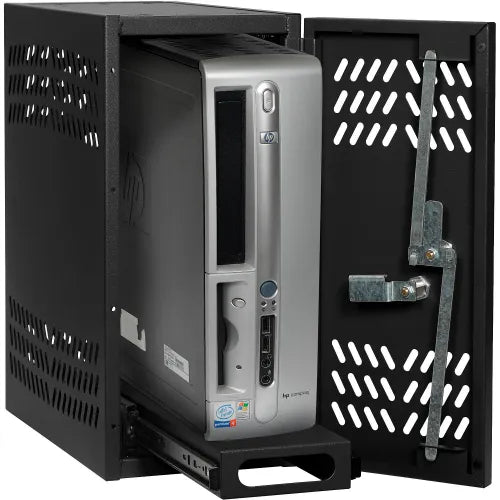

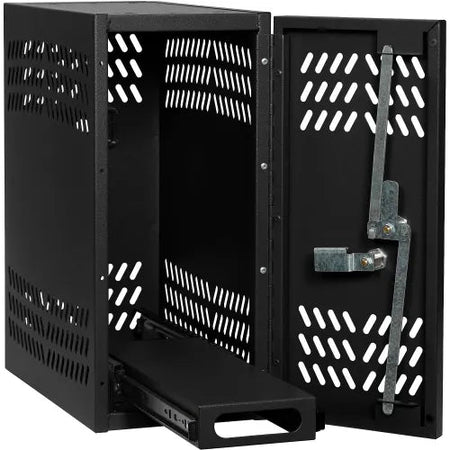

The CPU locker's unique slide out tray allows for easy maintenance of the CPU.
The grommet in the back of the unit allows for cable management. If needed, the plastic piece can be removed. The access hole size with the grommet removed is 3"x 1.5".
MATERIAL:
All models are manufactured from 20 gauge steel (top and bottom of unit are 18 gauge steel). All units are finished with durable powder coat paint. Units come standard in black. Other colors available upon request.
CABLE MANAGEMENT:
In order for wires to be plugged into your computer while secured in the enclosure, there is a cable grommet hole in the back of the unit. Hole size is 3" x 1.5" with grommet removed.
HOW TO MEASURE YOUR COMPUTER:
The inside dimensions listed for each CPU Locker is the MAXIMUM computer size that fits in each case, including wires. To measure the depth of your computer/server: plug in all wires, push against a wall, and measure from the wall out to the front of the computer. For the CPU 3, the maximum computer size, including wires is 10.5"w x 27.5"d x 25"h. Also, be sure to check the outside dimensions above and measure the area where the CPU locker will be installed to be sure it will fit.
